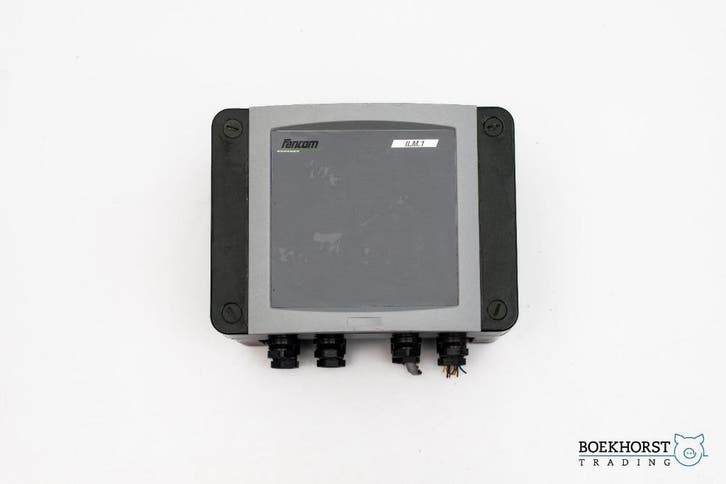

Fancom ILM.1

Fancom ILM.1 Weighing Module

The Fancom ILM.1 is an intelligent weighing module specially developed for accurate registration and processing of weight measurements within automated feed and management systems. The module converts signals from load cells into reliable measurement data and thus forms an essential link in monitoring feed quantities, silo contents and production processes within livestock farming.

Thanks to its high measurement accuracy and stable signal processing, the ILM.1 provides reliable data for optimal control of feed installations. The module communicates via the Fancom I/O network and can be easily integrated with various Fancom computers and management systems. The robust IP54 housing makes the ILM.1 suitable for use in demanding agricultural environments.

Key features

• Accurate processing of weighing signals

• Suitable for feed and silo weighing systems

• Communication via Fancom I/O network

• Reliable and stable measurement results

• Easy integration with Fancom automation systems

• Robust IP54 housing for long-term use

• Developed for professional applications in livestock farming

Technical specifications

• Supply voltage: 24 VDC (±20%)

• Resolution: 21 bit

• Excitation voltage: 5 VDC

• Maximum input signal: 78 mVDC

• Support for maximum 8 load cells of 350 Ω

• Protection class: IP54

• Dimensions: 300 × 240 × 140 mm

• Operating temperature: 0°C to +40°C

The Fancom ILM.1 offers a reliable solution for accurate weight registration and forms an indispensable link within modern feed and management systems in livestock farming.
